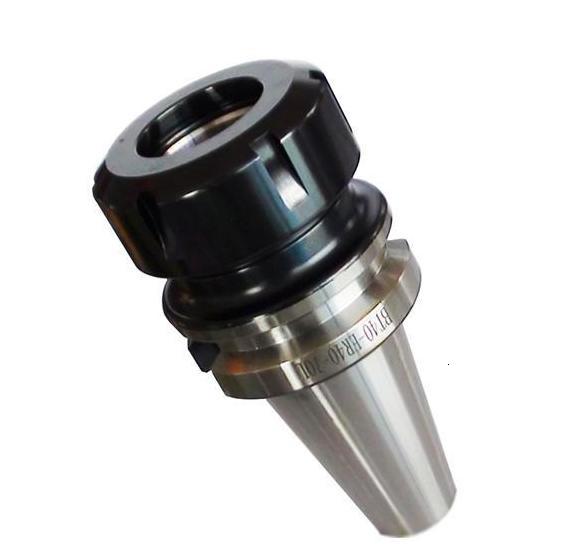

CNC BT ER COLLET CHUCK TOOL HOLDER

BT ER COLLET CHUCK with DIN6499 can be used for clamping straight shank cutters with different sizes. BT tool holder comes in a range of sizes designated as BT30, BT40, BT50, etc, and uses the same NMTB body taper as CAT. BT tooling is symmetrical with the spindle axis. This gives BT tooling greater stability and balance at high speeds. BT tool holders will accept both imperical and metric sized tools. BT tooling looks very similar and can easily be confused with CAT tooling. The difference between CAT and  BT is the flange type. Bt Er Collet Chuck Specifications  1.Collet Chuck modle No.: BT30,BT40,BT50  2.Bt30 Tool Holder Materail: 20CrMnTi 3.Taper tolerance:<AT3 4.Carbon depth: 0.8mm±0.2mm 5.Surface Roughness: Ra<0.005mm 6. Bt Tool Holder Hardness: HRC 56-58 7. Max run out: <0.005mm 8. Bt Collet Chuck Cooling AD+B type can be made by request 9. When Order, please specify balancing G6.3 or G2.5 10. Shank body standard: MAS 403 and B…
